Electrical Insulation Tapes

We manufacture a comprehensive amount of electrical insulation tapes and PVC insulation tape that are generally & widely used as electrical insulation, in cable & wires jointing, color coding, packaging, wiring, harness, etc.


post
PVC INSULATION TAPE

PVC insulating tape is produced from soft PVC film Primarily for electrical insulation purposes. It is also used for binding of electrical tools, manufacturing of automobile harness, anti-magnetic coil and various other purposes.

post

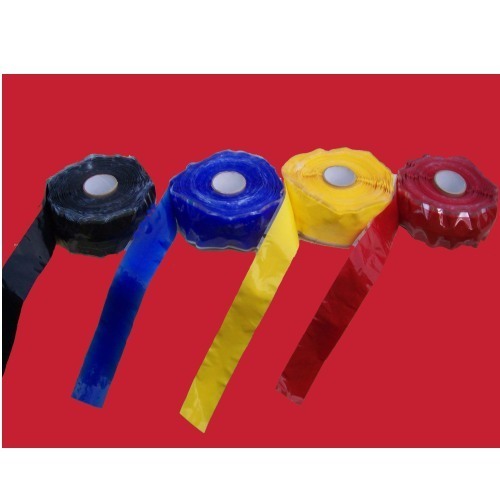

Silicone Rubber Self Fusing Tape

We manufacture and supply silicone rubber self fusing Tape. These silicone rubber self fusing tapes is a high performance, extruded wrapping tape. No adhesive is required. SSF Tape is self-adhering, self-fusing and permanent. It fuses in minutes and cures in 24 hours at room temperature.Faster curing and a harder finish is accomplished by applying heat after wrapping. Temperature range is -60°C to 250°C for continuous use; -65C to 260C for intermittent use. Break down voltages 33.6KV. Silicone rubber self fusing tapes is tough, permanently resilient, insulating and void-free. SSF is strong, elastic and conforming. It is ideal for automatic wrapping. It protects from effects of vibration and shock.It will not crack or separate with expansion or contraction stress.This product is amazingly useful.

Applications: :

  • Automatic wrapping,electrical insulation, moisture protection, high or low temperature applications. SSF is thermally conductive which allows generated heat to dissipate rapidly.
  • Used in Military, aerospace, industrial motor and marine applications including utility cable terminations and splices, bus bar insulation, motor coil terminal connections, and fuel line and hose repair.
  • Replacement of heat shrinkable tapes/sleeves. SSF can even be applied underwater.
  • Silicon Self-Fusing Tape tape is the perfect alternative to adhesive electrical tape, duct tape, and heat shrink tape for many applications. It withstands UV Rays, acids, weather, water and Ozone.
  • Size: 1ROLL 25.4MM X 0.508MM X 12 yards
post

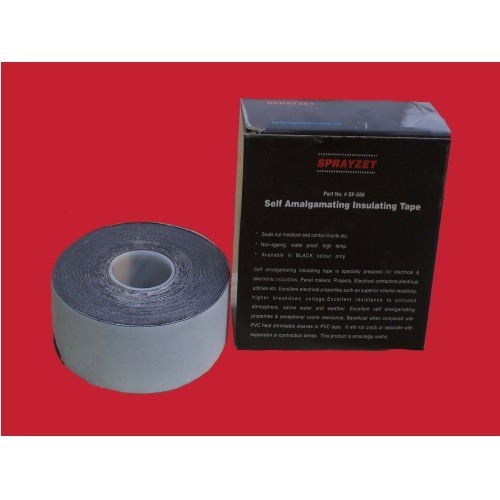

Self Amalgamating Insulating Tape

Self amalgamating insulating tapes are specially prepared for electrical & electronic industries, Panel makers, Projects, Electrical contactors, electrical utilities etc. Excellent electrical properties such as superior volume resistivity, higher breakdown voltage. Excellent resistance to polluted atmosphere, saline water and weather. Excellent self amalgamating properties & exceptional ozone resistance. Beneficial when compared with PVC heat shrinkable sleeves or PVC tape. It will not crack or separate with expansion or contraction stress. This product is amazingly useful. Break down voltages 53 KV.1ROLL 38MM X 0.76MM X 9.1 mtrs.
